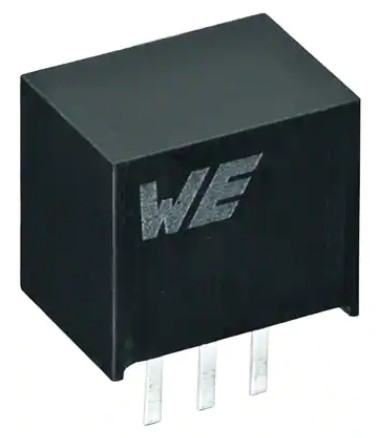

173011235 Non Isolated PoL Module DC Converter IC 12V 1A 16V - 36V Input
| Place of Origin | USA |
|---|---|
| Brand Name | Würth Elektronik |
| Certification | RoHS |
| Model Number | 173011235 |
| Minimum Order Quantity | 1000 |
| Price | negotiated |
| Packaging Details | pipe fitting |
| Delivery Time | 5-10 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 173011235 | Installation Type | Through-hole |
|---|---|---|---|
| Product Status | Active | Memory Type | Non-Volatile |
| Operating Temperature | -25°C ~ 85°C | Mounting Type | Surface Mount |
| High Light | 173011235 Non Isolated PoL Module,Non Isolated PoL Module 12V 1A,DC Converter IC 36V Input |
||
Product Description
173011235 Non Isolated PoL Module DC Converter 1 Output 12V 1A 16V - 36V Input
Würth Elektronik MagI³C FDSM Fixed Step-Down Regulator Modules integrate the switching power stage, control circuitry, and inductor all in one package. Input and output capacitors are integrated so there is no need for external components for the module to operate. These FDSM modules provide peak efficiency up to 95% and a fixed output voltage of 3.3V or 5V. Ideal applications for Würth MagI³C FDSM Fixed Step-Down Regulator Modules include point-of-load, replacements for linear regulators, interface and microcontroller supplies, as well as general purpose.
FEATURES
-
Peak efficiency up to 95%
-
6V to 28V input voltage range
-
3.3V or 5V fixed output voltage
-
500mA output current
-
Low output voltage ripple (typical value: 10mV)
-
Short circuit protection
-
-40°C to +85°C ambient operating temperature range
-
Thermal shutdown
-
Integrated capacitors and inductor
-
Pulse skipping for high efficiency at light loads
-
Fixed 570kHz switching frequency
-
Output overvoltage protection
-
RoHS and REACH compliant
-
UL 94V-0 package material
APPLICATIONS
-
Point-of-load from 18V, 15V, 12V, 9V rail
-
Replacements for linear regulators
-
Interface and microcontroller supplies
-
General purpose
|
category |
Power supply board installation DC converter |
|
manufacturer |
Würth Elektronik |
|
series |
MagI³C (1W) |
|
type |
Non isolated PoL module |
|
Number of outputs |
1 |
|
Voltage - Input (minimum) |
16V |
|
Voltage - Input (maximum) |
36V |
|
Voltage - Output |
12V |
|
Current output (maximum) |
1A |
|
Power (W) |
12 W |
|
application |
ITE(Commercial) |
|
working temperature |
-40°C ~ 85°C(with derating) |
|
efficiency |
92% |
|
Installation type |
Through-hole |
|
Encapsulation/Housing |
3-SIP module |
|
Size |
0.46" L x 0.31" W x 0.41" H(11.6mm x 8.0mm x 10.4mm) |
