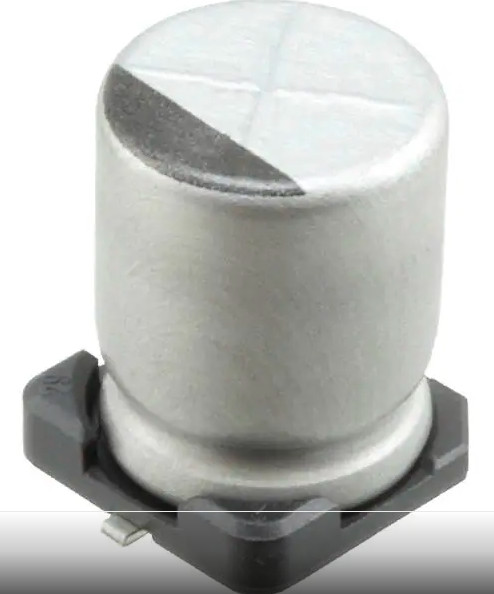

UCD1V101MNL1GS 100uF 35V Electrolytic Capacitor Radial Aluminum Electrolytic Capacitors

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | UCD1V101MNL1GS | Capacitance | 100 µF |
---|---|---|---|
Tolerance | ±20% | Voltage - Rated | 35 V |
Lifetime Temp. | 5000 Hrs 105°C | Operating Temperature | -55°C ~ 105°C |
High Light | 100uF Radial Aluminum Electrolytic Capacitors,UCD1V101MNL1GS,Radial 100uF 35V Electrolytic Capacitor |
UCD1V101MNL1GS 100µF 35V Aluminum Electrolytic Capacitors Radial 5000 Hrs 105°C
data of UCD1V101MNL1GS
Category | Capacitors Aluminum Electrolytic Capacitors |
Mfr | Nichicon |
Series | UCD |
Product Status | Active |
Capacitance | 100 µF |
Tolerance | ±20% |
Voltage - Rated | 35 V |
ESR (Equivalent Series Resistance) | - |
Lifetime @ Temp. | 5000 Hrs @ 105°C |
Operating Temperature | -55°C ~ 105°C |
Polarization | Polar |
Ratings | AEC-Q200 |
Applications | Automotive |
Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
Ripple Current @ High Frequency | 600 mA @ 100 kHz |
Impedance | 160 mOhms |
Lead Spacing | - |
Size / Dimension | 0.315" Dia (8.00mm) |
Height - Seated (Max) | 0.413" (10.50mm) |
Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
Mounting Type | Surface Mount |
