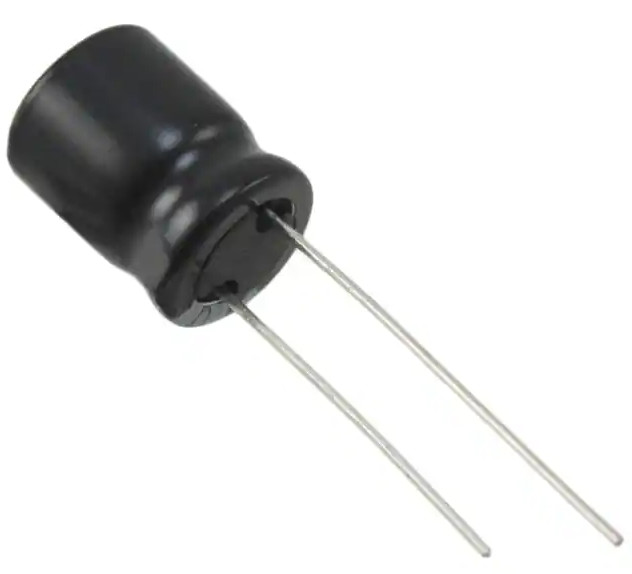

UHE1C471MPD6TD 470µF 16V Aluminum Electrolytic Capacitors Radial Can 7000 Hrs
| Place of Origin | Japan |
|---|---|
| Brand Name | Nichicon |
| Certification | RoHS |
| Model Number | UHE1C471MPD6TD |
| Minimum Order Quantity | 1000 |
| Price | negotiate |
| Packaging Details | Tape Box (TB) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 8500 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | UHE1C471MPD6TD | Capacitance | 470 µF |
|---|---|---|---|
| Tolerance | ±20% | Voltage - Rated | 16 V |
| Lifetime Temp | 7000 Hrs 105°C | Impedance | 80 MOhms |
Product Description
UHE1C471MPD6TD 470µF 16V Aluminum Electrolytic Capacitors Radial Can 7000 Hrs
Low impedance and high reliability withstanding 4000 hours to 10000 hours.
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863)
specification of UHE1C471MPD6TD
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Nichicon
|
|
Series
|
UHE
|
|
Product Status
|
Not For New Designs
|
|
Capacitance
|
470 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
16 V
|
|
Lifetime Temp.
|
7000 Hrs 105°C
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Polarization
|
Polar
|
|
Applications
|
General Purpose
|
|
Ripple Current Low Frequency
|
648.75 mA 120 Hz
|
|
Ripple Current High Frequency
|
865 mA 100 kHz
|
|
Impedance
|
80 mOhms
|
|
Lead Spacing
|
0.197" (5.00mm)
|
|
Size / Dimension
|
0.394" Dia (10.00mm)
|
|
Height - Seated (Max)
|
0.551" (14.00mm)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
Radial, Can
|
