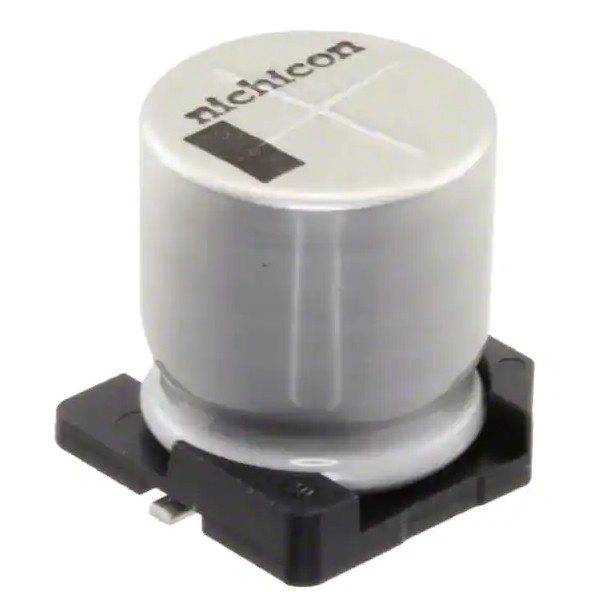

UCZ1J221MNQ1MS 220uf 63v Capacitor Smd Electrolytic Capacitors 200 Ohm 100kHz
| Place of Origin | Japan |
|---|---|
| Brand Name | Nichicon |
| Certification | RoHS |
| Model Number | UCZ1J221MNQ1MS |
| Minimum Order Quantity | 500 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 2000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | UCZ1J221MNQ1MS | Capacitance | 220 µF |
|---|---|---|---|
| Tolerance | ±20% | Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 200mOhm 100kHz | Lifetime Temp | 3000 Hrs 125°C |
| High Light | UCZ1J221MNQ1MS 220uf 63v Capacitor,220uf 63v Capacitor 100kHz,Smd Electrolytic Capacitors 200 Ohm 100kHz |
||
Product Description
UCZ1J221MNQ1MS 220µF 63V Aluminum Electrolytic Capacitors 200mOhm 100kHz 3000Hrs
Chip type, high temperature range, for +125°C use.
Added ESR specification after the test at -40°C.
Applicable to automatic mounting machine fed with carrier tape.
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).
AEC-Q200 compliant
specification of UCZ1J221MNQ1MS
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Nichicon
|
|
Series
|
UCZ
|
|
Product Status
|
Not For New Designs
|
|
Capacitance
|
220 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
63 V
|
|
ESR (Equivalent Series Resistance)
|
200mOhm 100kHz
|
|
Lifetime Temp.
|
3000 Hrs 125°C
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Polarization
|
Polar
|
|
Applications
|
General Purpose
|
|
Ripple Current Low Frequency
|
500 mA 120 Hz
|
|
Ripple Current High Frequency
|
1 A 100 kHz
|
|
Size / Dimension
|
0.492" Dia (12.50mm)
|
|
Height - Seated (Max)
|
0.571" (14.50mm)
|
|
Surface Mount Land Size
|
0.535" L x 0.535" W (13.60mm x 13.60mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
