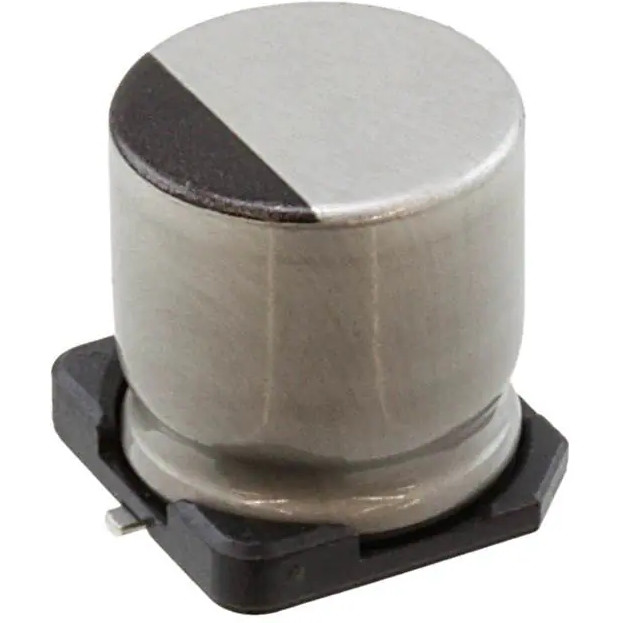

UCZ1C471MCL1GS Aluminum Electrolytic Capacitors 150Ohm Capacitor 470uf 16v
| Place of Origin | Japan |
|---|---|
| Brand Name | Nichicon |
| Certification | RoHS |
| Model Number | UCZ1C471MCL1GS |
| Minimum Order Quantity | 500 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 6000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | UCZ1C471MCL1GS | Capacitance | 470 µF |
|---|---|---|---|
| Tolerance | ±20% | Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 150mOhm | Lifetime Temp | 3000 Hrs 125°C |
| High Light | UCZ1C471MCL1GS Aluminum Electrolytic Capacitors,Aluminum Electrolytic Capacitors 150Ohm,150Ohm Capacitor 470uf 16v |
||
Product Description
UCZ1C471MCL1GS 470µF 16V Aluminum Electrolytic Capacitors 150mOhm 3000 Hrs 125
Chip type, high temperature range, for +125°C use.
Added ESR specification after the test at -40°C.
Applicable to automatic mounting machine fed with carrier tape.
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).
AEC-Q200 compliant
specification of UCZ1C471MCL1GS
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Nichicon
|
|
Series
|
UCZ
|
|
Product Status
|
Not For New Designs
|
|
Capacitance
|
470 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
16 V
|
|
ESR (Equivalent Series Resistance)
|
150mOhm
|
|
Lifetime Temp
|
3000 Hrs 125°C
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Polarization
|
Polar
|
|
Applications
|
General Purpose
|
|
Ripple Current Low Frequency
|
250 mA 120 Hz
|
|
Ripple Current High Frequency
|
500 mA 100 kHz
|
|
Size / Dimension
|
0.394" Dia (10.00mm)
|
|
Height - Seated (Max)
|
0.394" (10.00mm)
|
|
Surface Mount Land Size
|
0.406" L x 0.406" W (10.30mm x 10.30mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
