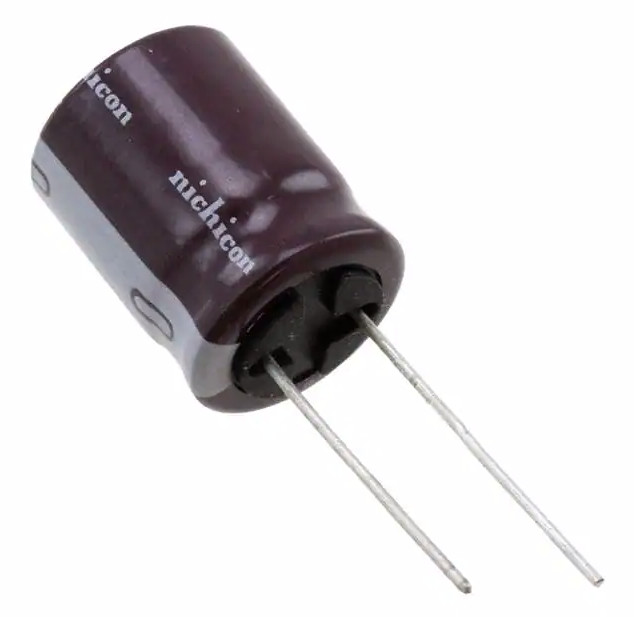

UCY2W330MHD3TN 33uf 450v Electrolytic Capacitor 12000 Hrs 105C 450v 33uf Capacitor
| Place of Origin | Japan |
|---|---|
| Brand Name | Nichicon |
| Certification | RoHS |
| Model Number | UCY2W330MHD3TN |
| Minimum Order Quantity | 500 |
| Price | negotiate |
| Packaging Details | Tape Box (TB) |
| Delivery Time | 3-5work days |
| Payment Terms | T/T |
| Supply Ability | 19250 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | UCY2W330MHD3TN | Capacitance | 33 µF |
|---|---|---|---|
| Tolerance | ±20% | Voltage - Rated | 450 V |
| Lifetime Temp | 12000 Hrs 105°C | Package / Case | Radial, Can |
| High Light | UCY2W330MHD3TN 33uf 450v Electrolytic Capacitor,33uf 450v Electrolytic Capacitor 12000 Hrs 105C,105C 450v 33uf Capacitor |
||
Product Description
UCY2W330MHD3TN 33µF 450V Aluminum Electrolytic Capacitors Radial 12000 Hrs 105°C
High ripple current and Long Life product withstanding load life of 10000 to 12000 hours at +105°C.
Suited for power supply and ballast application.
Compliant to the RoHS directive (2011/65/EU,(EU) 2015/863).
AEC-Q200 compliant
specification of UCY2W330MHD3TN
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Nichicon
|
|
Series
|
UCY
|
|
Product Status
|
Active
|
|
Capacitance
|
33 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
450 V
|
|
Lifetime Temp
|
12000 Hrs 105°C
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Polarization
|
Polar
|
|
Applications
|
General Purpose
|
|
Ripple Current Low Frequency
|
385 mA 120 Hz
|
|
Ripple Current High Frequency
|
770 mA 100 kHz
|
|
Lead Spacing
|
0.295" (7.50mm)
|
|
Size / Dimension
|
0.630" Dia (16.00mm)
|
|
Height - Seated (Max)
|
0.846" (21.50mm)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
Radial, Can
|
ORIGINAL
