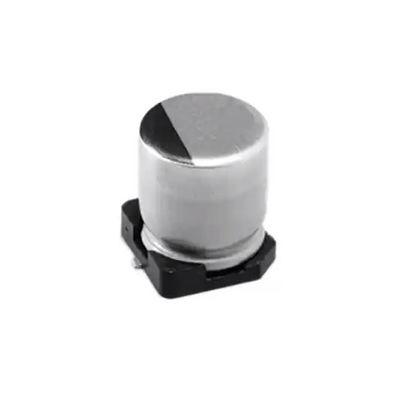

UCH1V221MCL1GS Aluminum Electrolytic Capacitors 220 35v Capacitor 200mOhm 100kHz
| Place of Origin | Japan |
|---|---|
| Brand Name | Nichicon |
| Certification | RoHS |
| Model Number | UCH1V221MCL1GS |
| Minimum Order Quantity | 500 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 2000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | UCH1V221MCL1GS | Capacitance | 220 µF |
|---|---|---|---|
| Tolerance | ±20% | Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 200mOhm 100kHz | Lifetime Temp | 2000 Hrs 125°C |
| High Light | UCH1V221MCL1GS Aluminum Electrolytic Capacitors,Aluminum Electrolytic Capacitors 220 35v,220 35v Capacitor 200mOhm 100kHz |
||
Product Description
UCH1V221MCL1GS 220µF 35V Aluminum Electrolytic Capacitors 200mOhm 100kHz 2000Hrs
specification of UCH1V221MCL1GS
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Nichicon
|
|
Series
|
UCH
|
|
Product Status
|
Active
|
|
Capacitance
|
220 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
35 V
|
|
ESR (Equivalent Series Resistance)
|
200mOhm 100kHz
|
|
Lifetime Temp.
|
2000 Hrs 125°C
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Polarization
|
Polar
|
|
Ratings
|
AEC-Q200
|
|
Applications
|
Automotive
|
|
Ripple Current Low Frequency
|
135 mA 120 Hz
|
|
Ripple Current High Frequency
|
270 mA 100 kHz
|
|
Size / Dimension
|
0.315" Dia (8.00mm)
|
|
Height - Seated (Max)
|
0.425" (10.80mm)
|
|
Surface Mount Land Size
|
0.327" L x 0.327" W (8.30mm x 8.30mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
