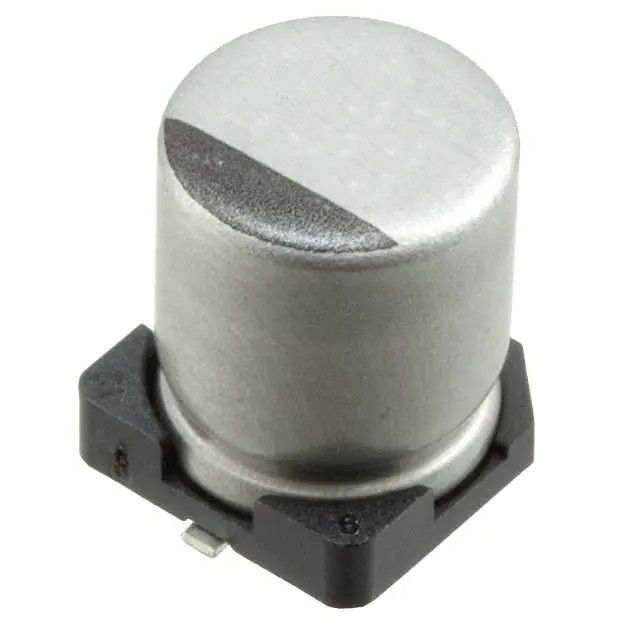

2000Hrs UCH1V101MCL1GS 100uf 35v Capacitor Aluminum 300mOhm 100kHz
| Place of Origin | Japan |
|---|---|
| Brand Name | Nichicon |
| Certification | RoHS |
| Model Number | UCH1V101MCL1GS |
| Minimum Order Quantity | 900 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 23020 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | UCH1V101MCL1GS | Capacitance | 100 µF |
|---|---|---|---|
| Tolerance | ±20% | Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 300mOhm 100kHz | Lifetime Temp | 2000 Hrs 125°C |
| High Light | 2000Hrs UCH1V101MCL1GS,UCH1V101MCL1GS 100uf 35v,100uf 35v Capacitor Aluminum 300mOhm 100kHz |
||
You can tick the products you need and communicate with us in the message board.
| Model | Capacitor | Voltage | Diameter | High | Life | |
|---|---|---|---|---|---|---|
| UHV1V221MPD | 220uF | 35V | 8mm | 13mm | 6000h | |
| UVZ1J471MHD | 470uF | 63V | 5mm | 12.5mm | 1000h | |
| UFW1J470MED1TD | 47uF | 63V | 6.3mm | 12.5mm | 2000h |
Product Description
UCH1V101MCL1GS 100µF 35V Aluminum Electrolytic Capacitors 300mOhm 100kHz 2000Hrs
specification of UCH1V101MCL1GS
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Nichicon
|
|
Series
|
UCH
|
|
Product Status
|
Active
|
|
Capacitance
|
100 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
35 V
|
|
ESR (Equivalent Series Resistance)
|
300mOhm 100kHz
|
|
Lifetime Temp.
|
2000 Hrs 125°C
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Polarization
|
Polar
|
|
Ratings
|
AEC-Q200
|
|
Applications
|
Automotive
|
|
Ripple Current Low Frequency
|
98.5 mA 120 Hz
|
|
Ripple Current High Frequency
|
197 mA 10 kHz
|
|
Size / Dimension
|
0.248" Dia (6.30mm)
|
|
Height - Seated (Max)
|
0.315" (8.00mm)
|
|
Surface Mount Land Size
|
0.260" L x 0.260" W (6.60mm x 6.60mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
