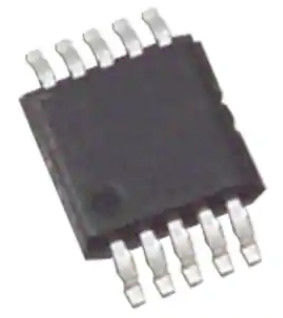

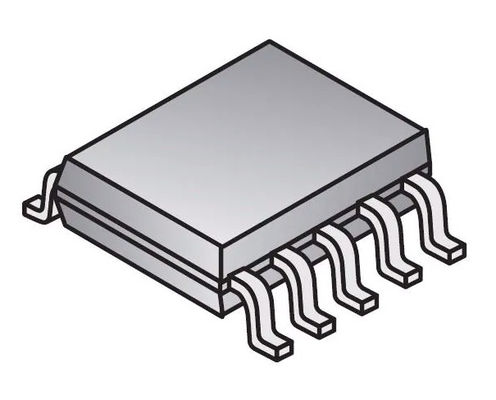

ISL1571IUEZ-T7 General Purpose Amplifier 2 Circuit Differential 10-HMSOP

The ISL1571 is a dual operational amplifier that is specifically designed for use in Orthogonal Frequency-Division Multiplexing (OFDM) and Spread Spectrum Communication (SSC) based solutions, where it is used for PLC line driving. This device is capable of driving up to 750mA, while consuming just 6mA of supply current per amplifier, and can operate from a single 4.5V to 12V supply. The driver has a typical distortion of -80dBc, at 150kHz into a 25Ω load. The ISL1571 is available in two package options: the thermally-enhanced 16 Ld QFN or the 10 Ld HMSOP package. It is also rated for operation across the full -40°C to +85°C temperature range. The ISL1571 comes with BIAS0 and BIAS1 control pins, which allow for the control of bias and enable/disable of the outputs. These controls can be used to lower the power to fit the performance/power ratio for the application. The ISL1571 is particularly well-suited for line driving applications that follow the Homeplug 1.0, Homeplug AV, and UPA standard-based PLC.

Applications

• Homeplug 1.0

• Homeplug AV

• UPA digital home standard

Features

• 21dBm output power capability

• Drives up to 750mA from a +12V supply

• 20VP-P differential output drive into 21Ω

• Very low noise floor

• -75dBc typical driver output distortion at 4MHz

• -80dBc typical driver output distortion at 10MHz

• -79dBc typical driver output distortion at 17MHz

• Low quiescent current of 6mA per amplifier

• Supply range

    ○ ISL1571IUEZ: 4.5V to 12V

    ○ ISL1571IRZ ±2.25V to ±6V: 4.5V to 12V

• 250MHz bandwidth

• Thermal shutdown

• Pb-free (RoHS compliant)

Circuit Configuration

specification of ISL1571IUEZ-T7
