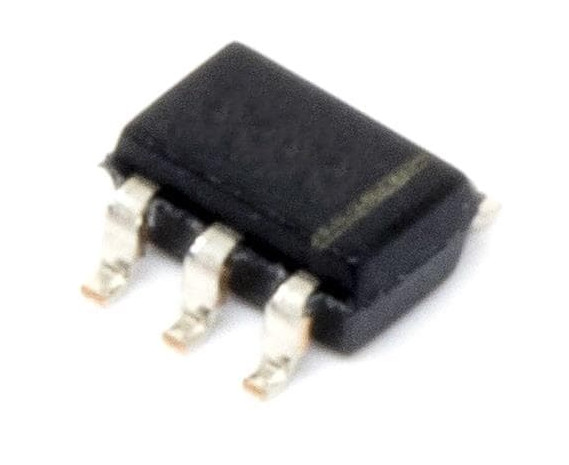

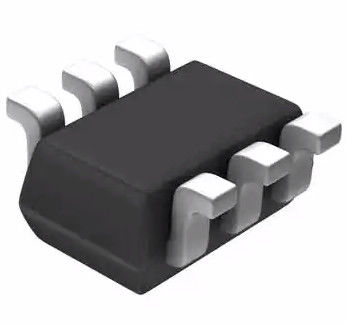

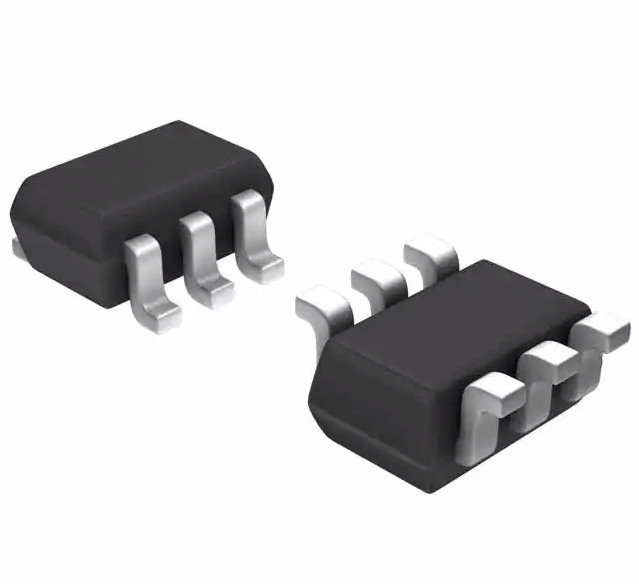

ISL90727WIE627Z-TK Digital Potentiometer 10k Ohm

ISL90727WIE627Z-TK Digital Potentiometer 10k Ohm 1 Circuit 128 Taps SC-70-6

The Intersil ISL90727 and ISL90728 are digitally controlled potentiometers (XDCP™). Each device consists of a resistor array, wiper switches, and a control section. The wiper position is controlled by an I2C Bus™.
The potentiometer is implemented by a resistor array composed of 127 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the SDA and SCL inputs.

Features
• Volatile Solid-State Potentiometer
• I²C Serial Bus Interface
• DCP Terminal Voltage, 2.7V to 5.5V
• Low Tempco
- Rheostat - 45 ppm/°C Typical
- Divider - 15 ppm/°C Typical
• 128 Wiper Tap Points
- Wiper Resistance 70Ω Typ at VCC = 3.3V
• Low Power CMOS
- Active Current, 200µA Max
- Standby Current, 500nA Max
• Available RTOTAL Values = 50kΩ,10kΩ
• Power-on Preset to Midscale
• Packaging
- 6 Ld SC-70
• Pb-Free (RoHS Compliant)

Applications
• Mechanical Potentiometer Replacement
• Transducer Adjustment of Pressure, Temperature, Position, Chemical, and Optical Sensors
• RF Amplifier Biasing
• LCD Brightness and Contrast Adjustment
• Gain Control and Offset Adjustment


specification of  ISL90727WIE627Z-TK
