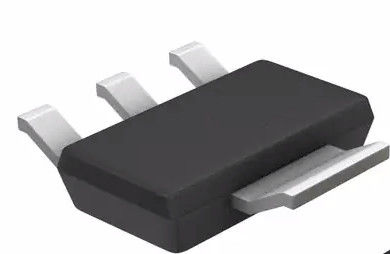

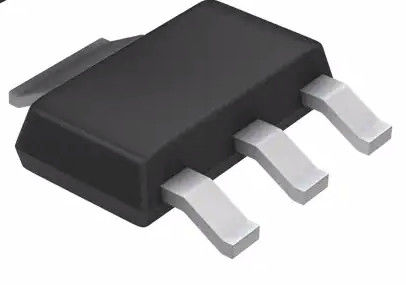

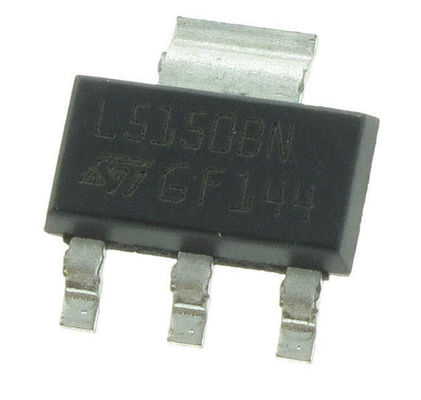

150mA L5150BNTR Linear Voltage Regulator IC Positive Fixed 1 Output SOT-223
| Place of Origin | USA |
|---|---|
| Brand Name | STMicroelectronics |
| Certification | RoHS |
| Model Number | L5150BNTR |
| Minimum Order Quantity | 1000 |
| Price | negotiations |
| Packaging Details | Cut Tape (CT) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | L5150BNTR | Voltage - Output (Min/Fixed) | 5V |
|---|---|---|---|
| Voltage Dropout (Max) | 0.5V / 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 80 µA | Current - Supply (Max) | 4.2 MA |
| Voltage - Input (Max) | 40V | ||
| Highlight | 150mA L5150BNTR,L5150BNTR Positive Fixed 1 Output,Linear Voltage Regulator IC SOT-223 |
||
Product Description
L5150BNTR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-223
L5150BN is a low dropout linear 5 V regulator particularly suitable for automotive applications. High output voltage accuracy (±2%) is kept over wide temperature range line and load variation. Its sophisticated design allows to have extremely low quiescent current. The maximum input voltage is 40 V. The regulator output current is internally limited and the device is protected against short-circuit, overload and overtemperature conditions. In addition, only low-value ceramic capacitor on output is required for stability.
Features
AEC-Q100 qualified
Operating DC supply voltage range 5.6 V to 40 V
Low dropout voltage
Low quiescent current
Precision output voltage 5 V ±2%
Very wide stability range with low value output capacitor
Thermal shutdown and short-circuit protection
Wide temperature range (Tj= -40 °C to 150 °C)
Block diagram
specification of L5150BNTR
| Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear |
Series | Automotive, AEC-Q100 |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 40V |
Voltage - Output (Min/Fixed) | 5V |
Voltage Dropout (Max) | 0.5V @ 150mA |
Current - Output | 150mA |
Current - Quiescent (Iq) | 80 µA |
Current - Supply (Max) | 4.2 mA |
PSRR | 48dB (100Hz) |
Protection Features | Over Temperature, Short Circuit |
Operating Temperature | -40°C ~ 150°C |
Mounting Type | Surface Mount |
Package / Case | TO-261-4, TO-261AA |
Supplier Device Package | SOT-223 |
