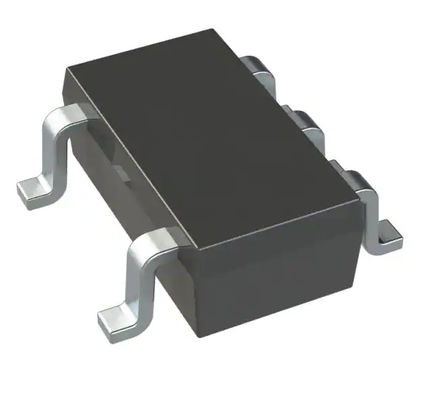

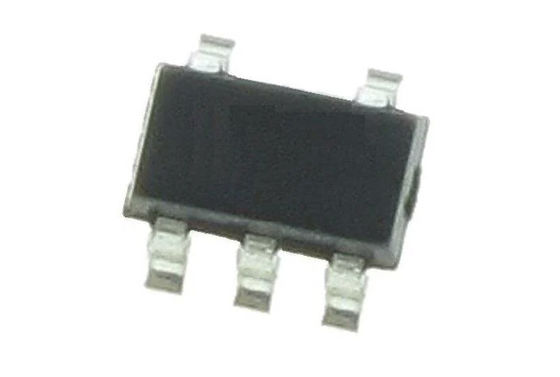

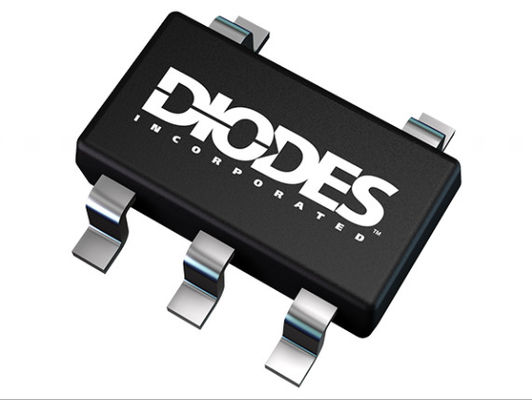

AP7370-50W5-7 Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-25
| Place of Origin | US |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AP7370-50W5-7 |
| Minimum Order Quantity | 3000 |
| Price | negotiate |
| Packaging Details | Cut Tape (CT) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 42000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage - Input (Max) | 18V | Voltage - Output (Min/Fixed) | 5V |
|---|---|---|---|
| Voltage Dropout (Max) | 0.55V @ 100mA | Current - Output | 300mA |
| Current - Quiescent (Iq) | 2.5 µA | Current - Supply (Max) | 300 µA |
Product Description
AP7370-50W5-7 Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-25
The AP7370 series is a positive voltage regulator IC.
The AP7370 has features of wide input voltage range, high accuracy, low dropout voltage, current limit, reverse current protection, and ultra-low quiescent current which make it ideal for use in various USB and portable devices and instrument application.
The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit.
The AP7370 is available in 1.2V, 1.5V, 1.8V, 2.8V, 3.0V, 3.3V, 3.6V and 5.0V fixed output voltage versions.
The AP7370 is available in space-saving SOT23, SOT25, SOT89 and U-DFN2020-6 (Type C) packages.
Features
Wide Input Voltage Range: Up to 18V
Low Dropout Voltage: VDROP = 500mV @ IOUT = 100mA
Low Ground Current
High Output Voltage Accuracy
Compatible with Low ESR Ceramic Capacitor
Excellent Line/Load Regulation
Thermal Shutdown Function
Short Current Protection
Reverse Current Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Applications
Battery-Powered Equipment
Laptop, Palmtops, Notebook Computers
Portable Information Appliances
Metering
Weighing Scales
Typical Applications Circuit
specification of AP7370-50W5-7
| Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear |
|
Mfr
|
Diodes Incorporated
|
|
Product Status
|
Active
|
|
Output Configuration
|
Positive
|
|
Output Type
|
Fixed
|
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
18V
|
|
Voltage - Output (Min/Fixed)
|
5V
|
|
Voltage Dropout (Max)
|
0.55V @ 100mA
|
|
Current - Output
|
300mA
|
|
Current - Quiescent (Iq)
|
2.5 µA
|
|
Current - Supply (Max)
|
300 µA
|
|
Protection Features
|
Over Current, Over Temperature, Reverse Current, Short Circuit
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
