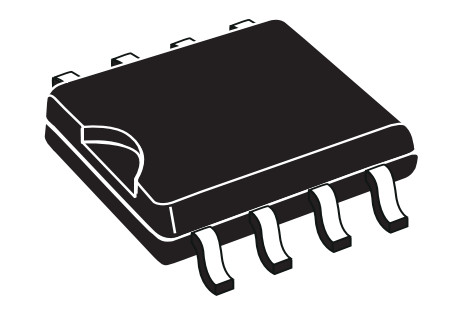

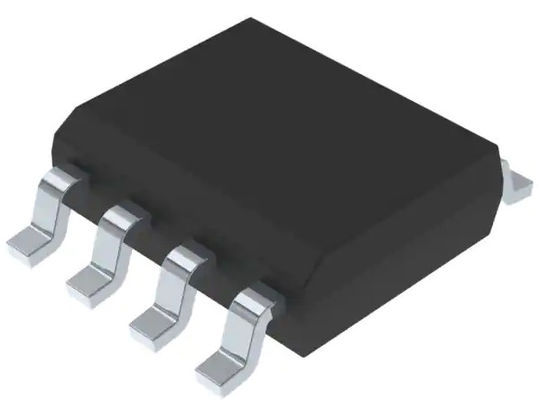

VN5160STR-E Power Switch/Driver 1:1 N-Channel 3.8A 8-SOIC Automotive

The VN5160S-E is a monolithic device made using STMicroelectronics VIPower M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC voltage clamp protects the device against low energy spikes.The device detects open load condition both in on and offstate, when STAT_DIS is left open or driven low. Output shorted to VCC is detected in the off-state. When STAT_DIS is driven high, STATUS is in a high impedance condition. Output current limitation protects the device in overload condition. In case of long duration overload, the device limits the dissipated power to safe level up to thermal shutdown intervention. Thermal shutdown with automatic restart allows the device to recover normal operation as soon as fault condition disappears.

Main

– Inrush current active management by power limitation

– Very low stand-by current

– 3.0V CMOS compatible input

– Optimized electromagnetic emission

– Very low electromagnetic susceptibility

– In compliance with the 2002/95/EC european directive

Diagnostic Functions

– Open drain status output

– On-state open load detection

– Off-state open load detection

– Thermal shutdown indication

Protection

– Undervoltage shutdown

– Overvoltage clamp

– Output stuck to Vcc detection

– Load current limitation

– Self limiting of fast thermal transients

– Protection against loss of ground and loss of VCC

– Thermal shutdown

– Reverse battery protection (see Figure 28)

– Electrostatic discharge protection

Applications

All types of resistive, inductive and capacitive loads

Application schematic

specification of VN5160STR-E
